PEEK規格素材 リング(ナチュラル)

自社技術で製造した、高品質・低価格のPEEK樹脂製リング規格素材です。

  1. HOME
  2. 規格素材TOP
  3. PEEKリング(ナチュラル)価格表

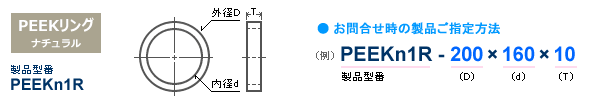

PEEKリング素材の型番と注文例

PEEK(ナチュラル)リングのサイズ価格表

外径D 内径d 厚み T (mm)-0,+2 /   単価 (円)※消費税別途 PEEKリング ナチュラル
Ø Ø T=10 T=15 T=20 T=25 T=30 T=35
100 × 70 1,540 2,240 2,940 3,640 4,340 5,040
80 1,490 2,160 2,840 3,520 4,190 4,870
90 1,040 1,510 1,980 2,450 2,930 3,400
120 × 80 2,280 3,310 4,350 5,380 6,420 7,460
95 2,220 3,220 4,230 5,240 6,250 7,260
110 1,580 2,290 3,010 3,730 4,450 5,170
140 × 100 2,800 4,070 5,340 6,610 7,890 9,160
115 2,640 3,840 5,040 6,240 7,440 8,640
130 1,470 2,130 2,800 3,470 4,140 4,810
160 × 110 4,950 7,200 9,450 11,700 13,950 16,200
125 4,080 5,930 7,780 9,640 11,490 13,350
140 3,130 4,550 5,970 7,390 8,820 10,240
180 × 110 5,830 8,480 11,130 13,780 16,430 19,080
125 5,220 7,590 9,960 12,330 14,710 17,080
140 4,560 6,630 8,700 10,770 12,850 14,920
155 3,250 4,720 6,200 7,680 9,150 10,630
160 3,010 4,370 5,740 7,110 8,480 9,850
200 × 130 6,930 10,080 13,230 16,380 19,530 22,680
145 6,320 9,190 12,060 14,930 17,810 20,680
160 5,500 8,000 10,500 13,000 15,500 18,000
175 3,880 5,640 7,400 9,170 10,930 12,690
180 3,370 4,900 6,430 7,960 9,490 11,020
220 × 115 9,070 13,190 17,310 21,430 25,560 29,680
130 8,740 12,710 16,680 20,650 24,630 28,600
145 8,410 12,230 16,050 19,870 23,700 27,520
160 7,590 11,040 14,490 17,940 21,390 24,840
175 6,550 9,520 12,500 15,480 18,450 21,430
190 5,370 7,810 10,250 12,690 15,130 17,570
200 4,380 6,370 8,360 10,350 12,340 14,330
240 × 165 8,850 12,870 16,890 20,910 24,940 28,960
180 8,030 11,680 15,330 18,980 22,630 26,280
195 7,460 10,850 14,240 17,630 21,020 24,410
210 5,900 8,580 11,260 13,940 16,620 19,300
220 4,810 6,990 9,180 11,360 13,550 15,740
260 × 80 16,550 24,070 31,590 39,110 46,640 54,160
95 16,390 23,840 31,290 38,740 46,190 53,640
110 15,730 22,880 30,030 37,180 44,330 51,480
125 15,120 21,990 28,860 35,730 42,610 49,480
140 14,440 21,000 27,560 34,130 40,690 47,250
155 13,680 19,890 26,110 32,330 38,550 44,770
170 12,680 18,440 24,200 29,970 35,730 41,490
185 11,020 16,020 21,030 26,040 31,050 36,060
200 9,760 14,190 18,630 23,060 27,500 31,940
215 8,160 11,860 15,570 19,280 22,990 26,700
230 6,800 9,890 12,980 16,070 19,160 22,250
240 5,220 7,590 9,960 12,330 14,710 17,080
280 × 130 17,490 25,440 33,390 41,340 49,290 57,240
145 16,550 24,070 31,590 39,110 46,640 54,160
160 16,040 23,330 30,620 37,910 45,200 52,490
175 14,390 20,930 27,470 34,010 40,550 47,090
190 13,830 20,110 26,400 32,680 38,970 45,260
205 12,380 18,000 23,630 29,260 34,880 40,510
220 11,380 16,550 21,720 26,890 32,070 37,240
235 10,030 14,580 19,140 23,700 28,260 32,820
250 8,690 12,640 16,590 20,540 24,490 28,440
260 5,650 8,210 10,780 13,350 15,920 18,490
300 × 170 17,650 25,670 33,690 41,710 49,740 57,760
185 16,790 24,420 32,050 39,680 47,310 54,940
200 15,670 22,790 29,910 37,030 44,160 51,280
215 14,870 21,620 28,380 35,140 41,900 48,660
230 13,110 19,060 25,020 30,980 36,940 42,900
245 11,770 17,120 22,470 27,820 33,170 38,520
260 9,710 14,120 18,530 22,950 27,360 31,770
275 7,440 10,820 14,200 17,580 20,960 24,340
280 6,060 8,810 11,560 14,320 17,070 19,830
320 × 200 17,870 25,990 34,110 42,230 50,360 58,480
215 17,650 25,670 33,690 41,710 49,740 57,760
230 17,440 25,360 33,290 41,220 49,140 57,070
245 15,500 22,540 29,590 36,630 43,680 50,720
260 13,210 19,210 25,210 31,220 37,220 43,230
275 10,900 15,850 20,800 25,760 30,710 35,670
290 8,710 12,660 16,620 20,580 24,540 28,500
300 6,470 9,410 12,350 15,290 18,230 21,170
340 × 160 28,100 40,870 53,640 66,410 79,190 91,960
175 27,560 40,080 52,610 65,140 77,660 90,190
190 26,760 38,920 51,080 63,250 75,410 87,570
205 25,670 37,330 49,000 60,670 72,340 84,010
220 24,280 35,310 46,350 57,380 68,420 79,460
235 23,510 34,190 44,880 55,560 66,250 76,940
250 20,960 30,480 40,010 49,540 59,060 68,590
265 19,460 28,300 37,150 45,990 54,840 63,680
280 16,940 24,640 32,340 40,040 47,740 55,440
295 13,450 19,560 25,670 31,790 37,900 44,010
310 9,530 13,860 18,190 22,520 26,850 31,180
320 6,900 10,030 13,170 16,300 19,440 22,580
360 × 185 29,790 43,330 56,870 70,410 83,950 97,490
200 29,040 42,240 55,440 68,640 81,840 95,040
215 29,250 42,540 55,840 69,130 82,430 95,720
230 26,940 39,180 51,430 63,670 75,920 88,160
245 26,200 38,100 50,010 61,920 73,830 85,740
260 24,160 35,140 46,120 57,100 68,080 79,060
275 21,740 31,620 41,500 51,380 61,260 71,140
290 19,530 28,400 37,280 46,160 55,030 63,910
305 16,230 23,600 30,980 38,360 45,730 53,110
320 12,840 18,670 24,510 30,340 36,180 42,020
335 8,760 12,740 16,720 20,700 24,680 28,660
340 7,310 10,630 13,950 17,270 20,600 23,920

(弊社製品は、全てバージン材を使用しております。)

上のサイズ・価格表は、予告なく変更する場合がございます。ご了承ください。
状表に含まれないサイズ、数量が多い場合などございましたら、製造可否の回答、お見積など承りますのでお気軽にご連絡下さい。
